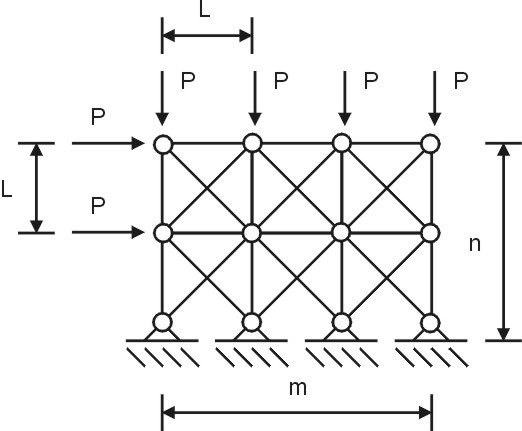

structure.apdl /PREP7 ET,1,LINK1 N, 1, 0, 0 N, 2, 1, 0 N, 3, 2, 0 N, 4, 3, 0 N, 5, 0, 1 N, 6, 1, 1 N, 7, 2, 1 N, 8, 3, 1 N, 9, 0, 2 N, 10, 1, 2 N, 11, 2, 2 N, 12, 3, 2 MP, EX, 1, 2.1e+11 R, 1, 0.0025 MAT 1 REAL 1 E, 1, 5 E, 2, 6 E, 5, 6 E, 1, 6 E, 2, 5 E, 3, 7 E, 6, 7 E, 2, 7 E, 3, 6 E, 4, 8 E, 7, 8 E, 3, 8 E, 4, 7 E, 5, 9 E, 6, 10 E, 9, 10 E, 5, 10 E, 6, 9 E, 7, 11 E, 10, 11 E, 6, 11 E, 7, 10 E, 8, 12 E, 11, 12 E, 7, 12 E, 8, 11 F, 5, FX, 10000 F, 9, FX, 10000 F, 9, FY, -10000 F, 10, FY, -10000 F, 11, FY, -10000 F, 12, FY, -10000 D, 1, UX, 0 D, 1, UY, 0 D, 2, UX, 0 D, 2, UY, 0 D, 3, UX, 0 D, 3, UY, 0 D, 4, UX, 0 D, 4, UY, 0

structure.iapdl MP, EX, 1, 5 R, 1, 5

Run Native Solver

structure.interval (output) Time of calculation: 0.04 [sec] Number of DOF: 16 Number of elements: 26 Number of nodes: 12 u[ 0]= [ 2.54206368927893e-05, 2.70758977991233e-05, 2.88890319829459e-05] node= 5 dof= 1 u[ 1]= [ -2.41613231842202e-06, -1.45525064589709e-06, -5.59362323023211e-07] node= 5 dof= 2 u[ 2]= [ 1.89488493026688e-05, 2.03244670585942e-05, 2.18240888299457e-05] node= 6 dof= 1 u[ 3]= [ -1.18336781275183e-05, -1.07203077121679e-05, -9.68801242678198e-06] node= 6 dof= 2 u[ 4]= [ 1.74375666485017e-05, 1.86853353510165e-05, 2.00368684309888e-05] node= 7 dof= 1 u[ 5]= [ -1.53016570105788e-05, -1.40293414211092e-05, -1.28438219917361e-05] node= 7 dof= 2 u[ 6]= [ 2.23883755090784e-05, 2.38816715072828e-05, 2.55322229372461e-05] node= 8 dof= 1 u[ 7]= [ -2.43184098360924e-05, -2.27501214588593e-05, -2.13175562611172e-05] node= 8 dof= 2 u[ 8]= [ 4.47984203980532e-05, 4.76520021045755e-05, 5.07482294189415e-05] node= 9 dof= 1 u[ 9]= [ -1.25873042500698e-05, -1.0800778851294e-05, -9.13828295995456e-06] node= 9 dof= 2 u[ 10]= [ 3.58319463043394e-05, 3.83064738991786e-05, 4.09641151999668e-05] node= 10 dof= 1 u[ 11]= [ -2.03184368590144e-05, -1.88999001199072e-05, -1.75638790058708e-05] node= 10 dof= 2 u[ 12]= [ 3.30408793908687e-05, 3.54230615860712e-05, 3.79901925037355e-05] node= 11 dof= 1 u[ 13]= [ -2.87524495626643e-05, -2.70377395621771e-05, -2.54594638852595e-05] node= 11 dof= 2 u[ 14]= [ 3.51831538994548e-05, 3.77051247175134e-05, 4.04232862441163e-05] node= 12 dof= 1 u[ 15]= [ -4.18322390326742e-05, -3.95037800489603e-05, -3.7394527683613e-05] node= 12 dof= 2
